40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant

Name: 40kw 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant
Brand: Forster
Price: 25000 USD

40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant Manufactures

Brand Name : Forster

Model Number : ZD760-LM/LMY-100

Certification : CE/TUV/ISO9001/From-E

Place of Origin : Sichuan, China (Mainland)

MOQ : 1 Set/Sets

Price : USD25000-118500/set

Payment Terms : L/C, T/T

Supply Ability : 30set/month

Delivery Time : 90days

Packaging Details : wood box

Low head : 2.1-6.5m

Discharge : 2.61-5.2m3/s

Rate speed : 375-1000r/mim

Governor : Manual and electric

Runner material : stainless steel

Keyword : Kaplan Turbine

Contact Now

40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant

Our main products included:

1. Kpalan turbine generators series

2. Turgo turbine generators series, e.g. vertical type and horizontal type.

3. Tubular turbine generators series, e.g. Bulb type and shaft extension type

4. Francis turbine generators series

5. Pelton turbine generators series and double turbine generators series and so on.

Product Features

Suitable for the development of low water head(2-30m) and larger flow of water resources.

Suitable for large change of water head and small load changes of power station,

Suitable for the power station that middle and low water head, head and power can be changed greatly,it can be operated stably and efficiently in various working conditions

This machine is a vertical shaft device, it has the advantages of simple structure and convenient repair, the equipment ‘s price is low and it ‘s easy to realize the characteristics of direct drive etc.

Product parameters

ZD760- LM/LMY-100 Hydro Kpalan Tubine Performance Data And Supporting Table
Model	Turbine Parameters				Generator Parameters						Driving mode	Speed Way
	Design head(m)	Under the design head		Design speed (r/min)	Model	power (kw)	Rated voltage (v)	Rated electric current (A)	Rated speed (r/min)	The run way speed (r/min)		Manually	Automatic
	Design head(m)	Flow rate (m3/s)	The output(kw)	Design speed (r/min)	Model	power (kw)	Rated voltage (v)	Rated electric current (A)	Rated speed (r/min)	The run way speed (r/min)		Manually	Automatic
ZD760- LM/LMY-100 = 4-5°	2.1	2.61	47.1	261	SF40-8/493	40	400	72.2	750	1500	Belt	Manually	TT-3CC0
	2.5	2.49	61.2	285	SF55-8/493	55	400	99.2	750	1500	Belt	Manually	TT-3CC0
	2.7	2.96	68.5	300	SF55-6/493	55	400	99	1000	2000	Belt	Manually	TT-3CC0
	3.3	3.27	92.5	327	SF75-8/590	75	400	136	750	1500	Belt	Manually	TT-3CC0
	4	3.6	123	360	SF1 00-8/590	100	400	181	750	1500	Belt	Manually	TT-3CC0
	4.4	3.78	143	375	SF1 25-16/990	125	400	226	750	750	Straight league	Manually	TT-3CC0
	5.2	3.95	177	375	SF1 60-16/990	160	400	289	375	750	Straight league	Manually	TT-3CC0
	6	4.34	224	429	SF200-14/990	200	400	361	428.6	856	Straight league	Manually	TT-3CC0
	7	4.51	270	429	SF250-14/990	250	400	451	428.6	856	Straight league	Manually	TT-3CC0

ZD760- LM/LMY-100 = 4-10°	2	2.87	48	240	SF4 0-8/49 3	40	400	72.2	750	1500	Belt	Manually	TT-3CC0
	2.5	3.21	67	269	SF55-8/493	55	400	99	750	1500	Belt	Manually	TT-3CC0
	3.1	5.58	92.5	300	SF75-8/590	75	400	13.5	750	1650	Gear	Manually	TT-3CC0
	3.9	3.71	121	300	SF1 00-8/590	100	400	181	750	1650	Straight league	Manually	TT-3CC0
	4.2	4.16	141.9	348	SF1 25-16/990	125	400	226	375	750	Straight league	Manually	TT-3CC0
	4.8	4.58	183	375	SF160-16/990	160	400	289	375	750	Straight league	Manually	TT-3CC0
	5.7	4.75	220	375	SF200-16/990	200	400	361	375	750	Straight league	Manually	TT-3CC0
	6.5	5.2	280	429	SF250-14/990	250	400	451	428.6	856	Straight league	Manually	TT-3CC0

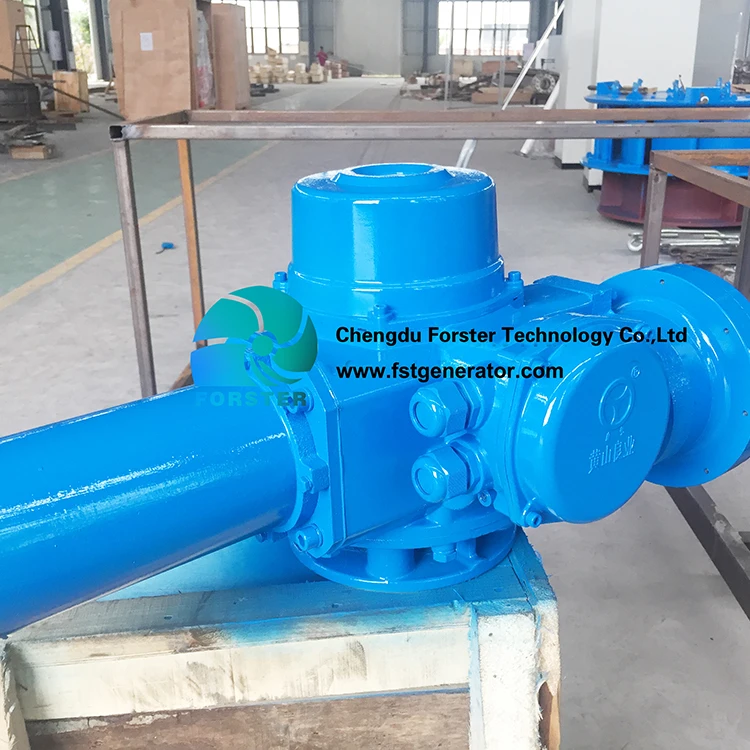

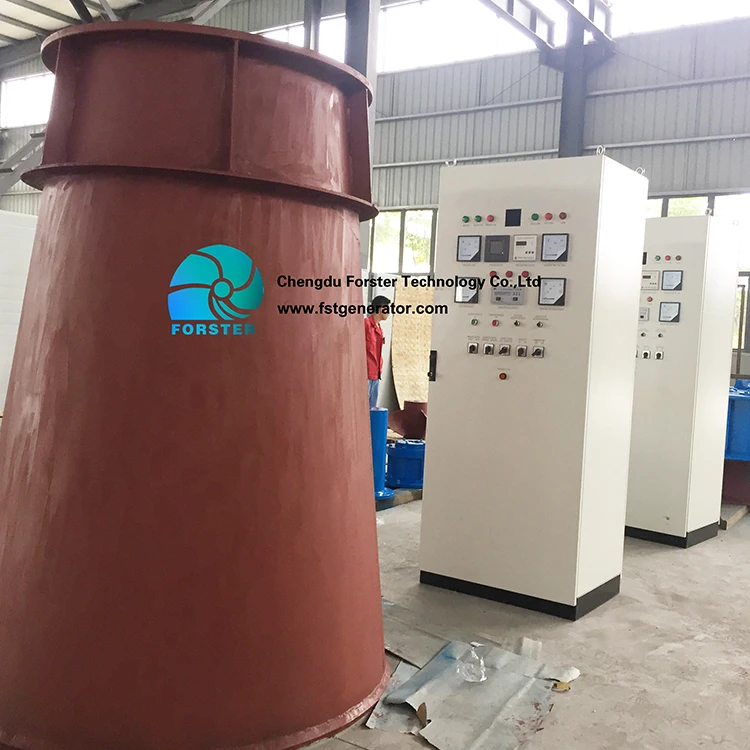

Product pictures

40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant

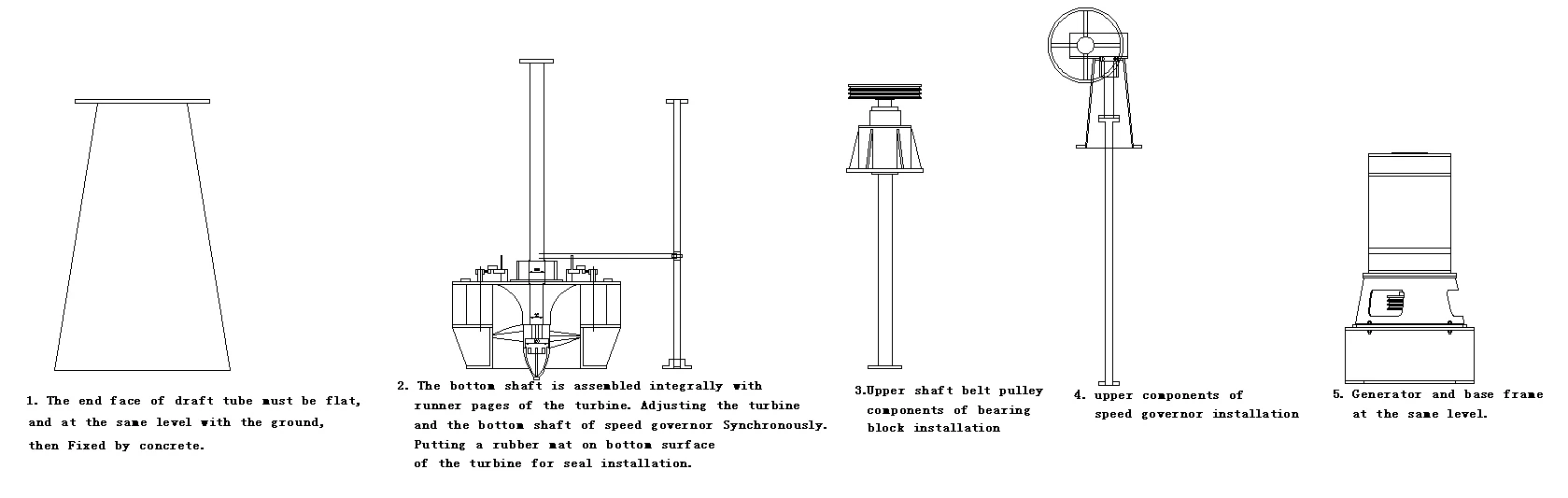

Installation drawing: 40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant

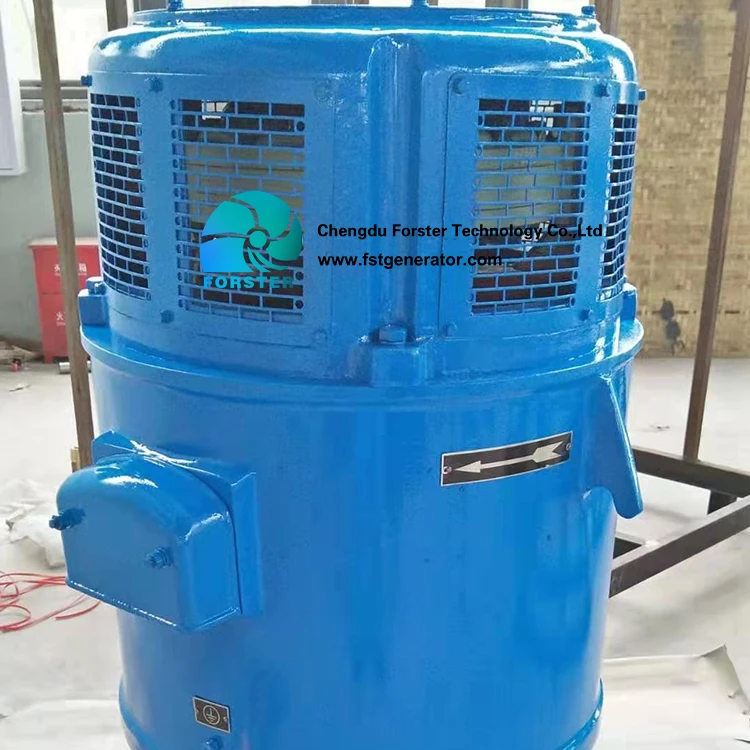

water turbine electric generator

hydro water turbine generator

40kw - 250kw Alternative Energy Low Head Kaplan Turbine For Hydro Power Plant Images
